Volkswagen Tiguan Service and Repair Manual: Sound System Amplifier
General Information
Note
- Before troubleshooting or servicing, the technicians must be familiar with the function and operation of the radio and radio navigation system.
- Refer to the Owner's Manual.
- Use the Vehicle Diagnostic Tester"Guided Fault Finding" function and → Wiring diagrams, Troubleshooting & Component locations when servicing or fault finding.
- When the battery is reconnected, check any affected system or component (radio, clock, comfort electrical connection etc.) according to the repair manual and/or the Owner's Manual.
The sound system amplifier serves to expand the sound of the radio unit or radio navigation system.
It can be obtained for the corresponding appropriate radio units and radio navigation systems as special equipment.
The amplifier is an 8-channel amplifier.
The activation of signal inputs to amplifier occurs via radio speaker outputs or the radio/navigation system.
The amplifier is installed under the left front seat.
Remove and install amplifier.Troubleshooting
The amplifier is equipped with OBD.To fault find, use "Guided Fault Finding" in the Vehicle Diagnostic Tester
Amplifier, Removing and Installing
General Information

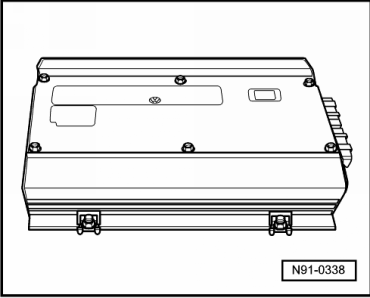

View of 8-channel amplifier:

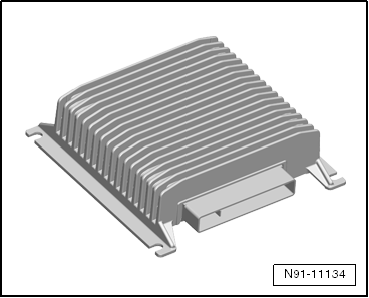

View of 10-channel amplifier:
Removing
Do the following before starting the procedure:
- Turn off the ignition and all electric consumers and remove the key.
The amplifier is installed under the left front seat.
- Move the seat as far up and back as possible.

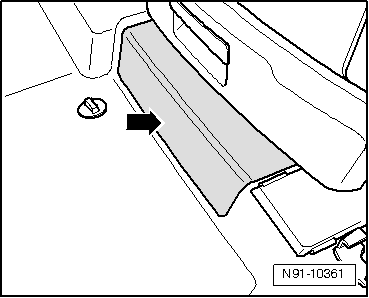

- Unclip cover -arrow- on seat at bottom.

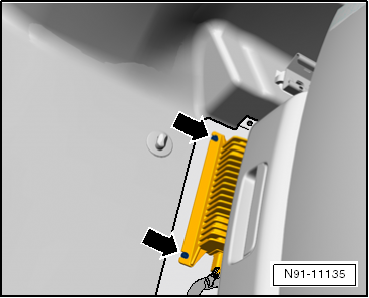

- Remove screws -arrows- on amplifier.
- Pull out the amplifier just far enough until the connectors are accessible.

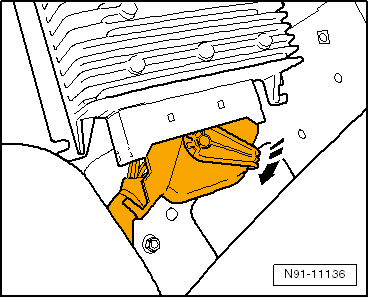

- Release and remove the connector on the amplifier in the direction of -arrow-.
Note
Different amplifiers may have a different number of connectors, and the procedure for removing the connectors may be different.
- Remove the amplifier.
Installing

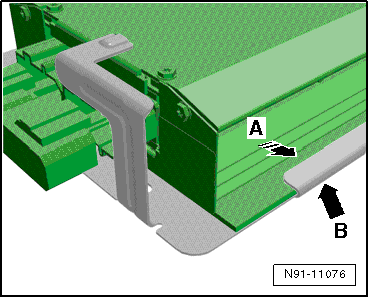

- Slide the amplifier into the mount -arrow B- on the bracket in the direction of -arrow A-.
Remaining installation in reverse order of removal.
"RNS 510" Radio/Navigation System
General Information
"RNS 510" Radio/Navigation System
The Radio Navigation System "RNS 510" combines the functions of a navigation
system with those of a high-value RDS vehicle radio.
The following d ...
CD Changer
CD Changer, Removing and Installing
General Information
Note
The CD changer is not faulty if the CD changer plays commercially
available CDs, but not self-burned CDs. Do not replace the CD changer ...
