Volkswagen Tiguan Service and Repair Manual: Drive Axle with CV Joint, Removing and Installing

Special tools and workshop equipment required

• Torque Wrench 1332 40-200Nm -VAG1332-
• Drive Shaft Remover -T10520-

Caution

When disassembling and performing repairs on a vehicle, the drive axles must not hang down loosely and contact the stops in the joint by over bending.

Removing

• Loosen the drive axle bolt on the wheel hub:
  • Twelve-point bolt with ribs.
  • Twelve-point bolt without ribs.

Caution

The wheel bearing must not be under load when the drive axle threaded connection on the wheel side is loose.

If the wheel bearings are under the load of the vehicle weight, the wheel bearing will be damaged. This reduces the service life of the wheel bearings.

The drive axle bolt may be loosened maximum 90º when the vehicle is standing on its wheels.

Vehicles without a drive axle must not be moved, otherwise the wheel bearing will be damaged. If a vehicle must be moved, be sure to note the following:

• Install an outer joint in place of the drive axle.
• Tighten the outer joint to 120 Nm.



• Remove the lower noise insulation.
• Remove the drive axle from the flange shaft/transmission.
• Remove the wheel.
• Slide outer joint out of wheel hub by hand.

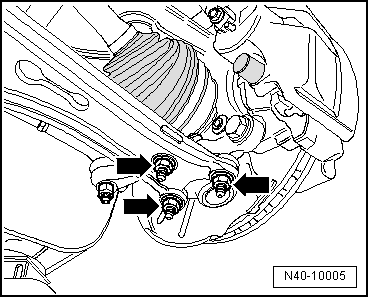

• Remove the nuts -arrows-.
• Remove the wheel bearing housing with the ball joint from the control arm.
• Remove the drive axle from the wheel hub.

If the drive axle cannot be pulled out of the wheel bearing, then the drive axle can be pushed out of the wheel bearing using the Drive Shaft Remover -T10520-.

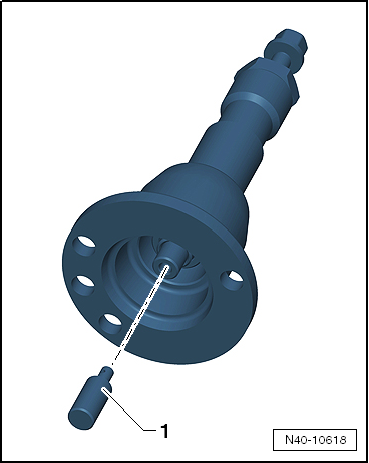

Before using the Drive Shaft Remover -T10520-, make sure that the thrust piece -1- is installed.

Using the Drive Shaft Remover -T10520-:

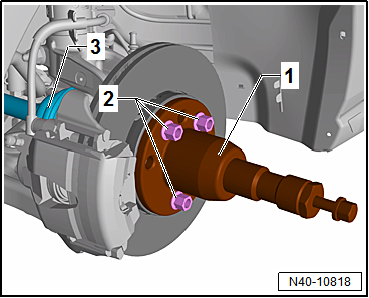

• Secure the Drive Shaft Remover -T10520--1- with three wheel bolts -2- on the wheel hub, so that the drive axle -3- can be pressed out.

• Follow the specified sequence exactly.

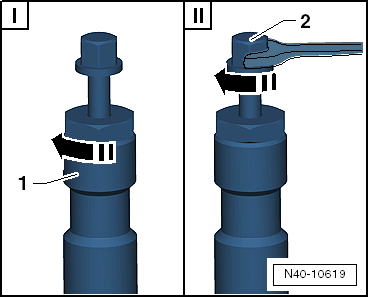

1. Tighten the knurled nut -1- hand-tight.
2. Only turn the bolt -2- using a wrench and press out the drive axle using the Drive Shaft Remover -T10520-.

Note

At the end of the tasks or to set back, the spindles must be brought back into the original position so that the hydraulic operation can be used.

Installing

Remove any paint residue and/or corrosion in threads/splines of outer joint.

• Insert the drive axle.
• Insert outer joint as far as possible into wheel hub splines.
• Attach the ball joint to the control arm -arrows-.

Note

Make sure the ball joint boot is not damaged or twisted.

• Position the inner joint of the drive axle and tighten the bolts in a diagonal sequence to 10 Nm.
• Tighten multi-point socket head bolts to specified tightening specification in diagonal sequence.
• Install the lower noise insulation.
• Tighten the drive axle bolt to the wheel hub:
  • Twelve-point bolt with ribs.
  • Twelve-point bolt without ribs.

Caution

The vehicle must not be resting on the wheels when doing so.

When the bolt is loose, the wheel bearing can be damaged by the vehicle's weight.

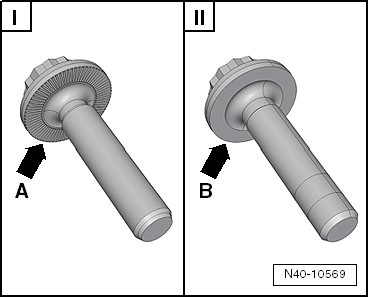

Difference between A Twelve-Point Bolt with Ribs and A Twelve-Point Bolt without Ribs

The contact surfaces -arrow A- and -arrow B- are different on the two-point bolts.

1. Twelve-point bolt with ribs -arrow A-
2. Twelve-point bolt without ribs -arrow B-

• Install the wheel and tighten.

Tightening Specifications

Component	Tightening Specification
Ball joint to aluminum control arm: Use new nuts Tighten only in curb weight position.	60 Nm
Ball joint to sheet steel control arm Use new nuts Tighten only in curb weight position.	100 Nm
Drive axle to wheel hub "twelve-point bolt with ribs" Use a new bolt	70 Nm + 90º
Drive axle to wheel hub "twelve-point bolt without ribs" Use a new bolt	200 Nm +180º
Drive axle to flange shaft/transmission "Multi-point socket head bolt M10" Use new bolts. Use new backing plates	70 Nm Tighten to 10 Nm in diagonal sequence

Left Axle Shaft with Mounted CV Joint, Removing and Installing

Special tools and workshop equipment required

• Slide Hammer Set -VW771-
• Puller - Driveshaft -T10382-
• Torque Wrench 1332 40-200Nm -VAG1332-
• Drive Shaft Remover -T10520-

Caution

When disassembling and performing repairs on a vehicle, the drive axles must not hang down loosely and contact the stops in the joint by over bending.

Removing

• Loosen the drive axle bolt on the wheel hub:
  • Twelve-point bolt with ribs.
  • Twelve-point bolt without ribs.

Caution

The wheel bearing must not be under load when the drive axle threaded connection on the wheel side is loose.

If the wheel bearings are under the load of the vehicle weight, the wheel bearing will be damaged. This reduces the service life of the wheel bearings.

The drive axle bolt may be loosened maximum 90º when the vehicle is standing on its wheels.

Vehicles without a drive axle must not be moved, otherwise the wheel bearing will be damaged. If a vehicle must be moved, be sure to note the following:

• Install an outer joint in place of the drive axle.
• Tighten the outer joint to 120 Nm.



• Remove the lower noise insulation.
• Remove the wheel.

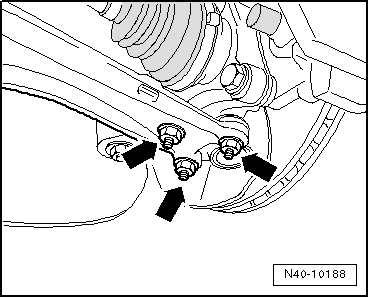

• Remove the nuts -arrows-.
• Remove the wheel bearing housing with the ball joint from the control arm.
• Slide outer joint out of wheel hub by hand.

If the drive axle cannot be pulled out of the wheel bearing, then the drive axle can be pushed out of the wheel bearing using the Drive Shaft Remover -T10520-.

Before using the Drive Shaft Remover -T10520-, make sure that the thrust piece -1- is installed.

Using the Drive Shaft Remover -T10520-:

• Secure the Drive Shaft Remover -T10520--1- with three wheel bolts -2- on the wheel hub, so that the drive axle -3- can be pressed out.

• Follow the specified sequence exactly.

1. Tighten the knurled nut -1- hand-tight.
2. Only turn the bolt -2- using a wrench and press out the drive axle using the Drive Shaft Remover -T10520-.

Note

At the end of the tasks or to set back, the spindles must be brought back into the original position so that the hydraulic operation can be used.

• Secure the drive axle from falling down.

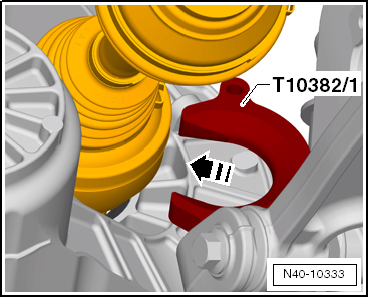

• Place the Puller - Driveshaft - Removing Plate -T10382/1- behind the CV joint -1-.

The opening -arrow- in the Puller - Driveshaft - Removing Plate -T10382/1- must face the CV joint -1-.

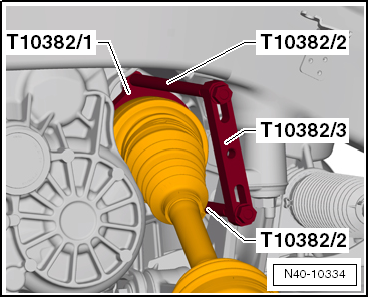

• Install the Puller - Driveshaft - Spindles -T10382/2- and Puller - Driveshaft - Traverse -T10382/3- on the Puller - Driveshaft - Removing Plate -T10382/1-.
• Install the Slide Hammer Set -VW771- on the Puller - Driveshaft - Traverse -T10382/3-.
• Remove the drive axle with a few hits on the Slide Hammer Set -VW771-.
• Remove the drive axle from the vehicle.

Installing

Remove any paint residue and/or corrosion in threads/splines of outer joint.

• Install the new circlip into the stub shaft groove on the transmission.
• Install the new circlip into the stub shaft groove on the transmission.
• Bring outer and inner splines of the transmission and CV joint into engagement.
• Grab the drive axle by hand and push it into the CV joint up to the stop.
• Now push the CV joint with one "jerk" onto the transmission stub shaft.

Note

Do not use a hammer or a knocking tool under any circumstances!

• Make sure the CV joint is securely fitted by pulling the CV joint against the circlip resistance.

Caution

For this check, do not pull on the drive axle, but rather only on the CV joint.

• Remove the Tensioning Strap -T10038-.
• Insert outer joint as far as possible into wheel hub splines.
• Attach the ball joint to the control arm -arrows-.

Note

Make sure the ball joint boot is not damaged or twisted.

• Install the lower noise insulation.
• Tighten the drive axle bolt to the wheel hub:
  • Twelve-point bolt with ribs.
  • Twelve-point bolt without ribs.

Caution

The vehicle must not be resting on the wheels when doing so.

When the bolt is loose, the wheel bearing can be damaged by the vehicle's weight.

Difference between A Twelve-Point Bolt with Ribs and A Twelve-Point Bolt without Ribs

The contact surfaces -arrow A- and -arrow B- are different on the two-point bolts.

1. Twelve-point bolt with ribs -arrow A-
2. Twelve-point bolt without ribs -arrow B-

• Install the wheel and tighten.

Tightening Specifications

Component	Tightening Specification
Ball joint to aluminum control arm: Use new nuts Tighten only in curb weight position.	60 Nm
Ball joint to sheet steel control arm Use new nuts Tighten only in curb weight position.	100 Nm
Drive axle to wheel hub "twelve-point bolt with ribs" Use a new bolt	70 Nm + 90º
Drive axle to wheel hub "twelve-point bolt without ribs" Use a new bolt	200 Nm +180º
