Volkswagen Tiguan Service and Repair Manual: Cover Points

Volkswagen Tiguan Service and Repair Manual / Paint / Cover Points

Front Body Cover Points

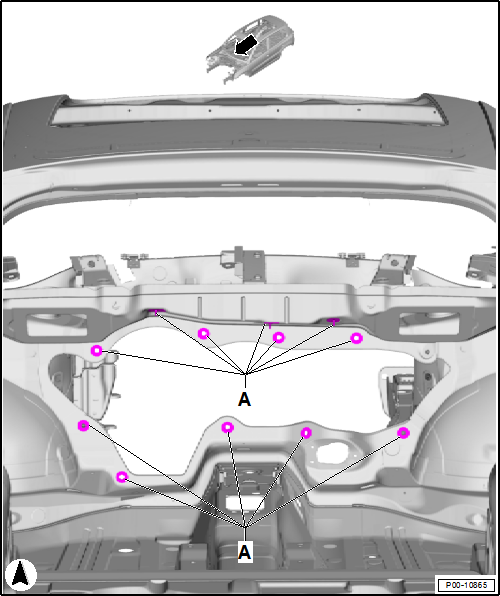

Engine Compartment Cover Points in the Plenum Chamber Area

Volswagen Tiguan. Engine Compartment Cover Points in the Plenum Chamber Area

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  3. Threads and Contact Surfaces Free of Cataphoretic Paint, Filler and Top Coat

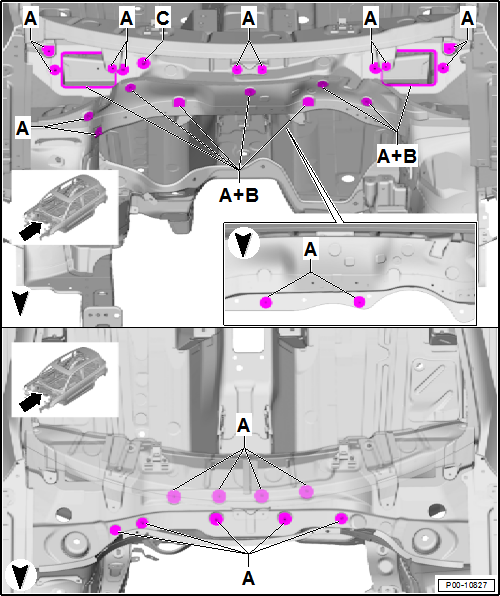

Cover Points in the Center of the Engine Compartment Area

Volswagen Tiguan. Cover Points in the Center of the Engine Compartment Area

  1. Threads and Contact Surfaces Free of Sealant

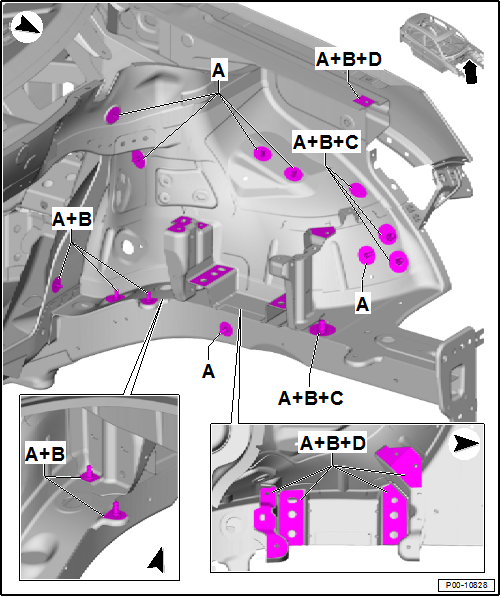

Engine Compartment Cover Points on the Left Side

Volswagen Tiguan. Engine Compartment Cover Points on the Left Side

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces free of Wax Buildup
  3. Threads and Contact Surfaces Free of Cataphoretic Paint, Filler and Top Coat
  4. Threads Free of Wax

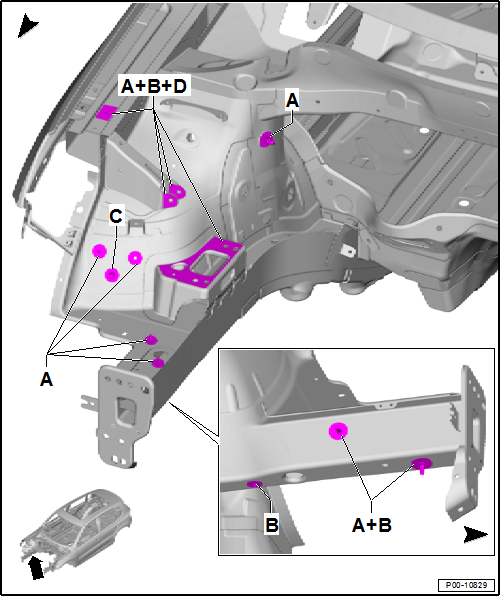

Engine Compartment Cover Points on the Right Side

Volswagen Tiguan. Engine Compartment Cover Points on the Right Side

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  3. Threads and Contact Surfaces Free of Cataphoretic Paint, Filler and Top Coat
  4. Threads Free of Wax

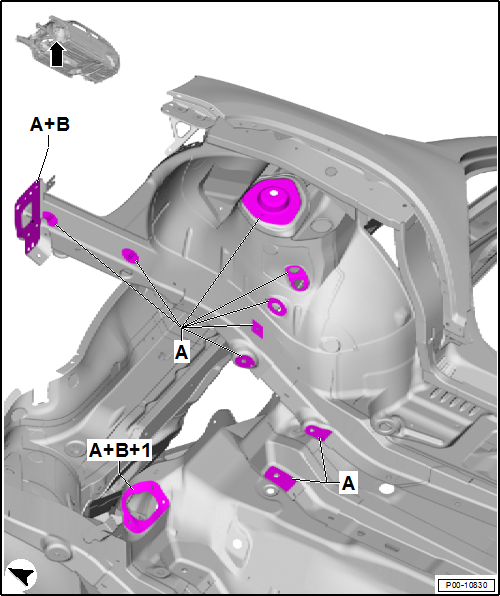

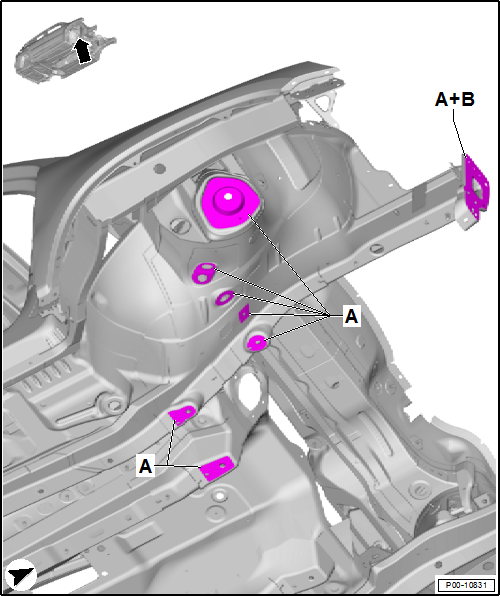

Left Front Wheel Housing Cover Points

Volswagen Tiguan. Left Front Wheel Housing Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  1. RHD Steering Cut-Out

Right Front Wheel Housing Cover Points

Volswagen Tiguan. Right Front Wheel Housing Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup

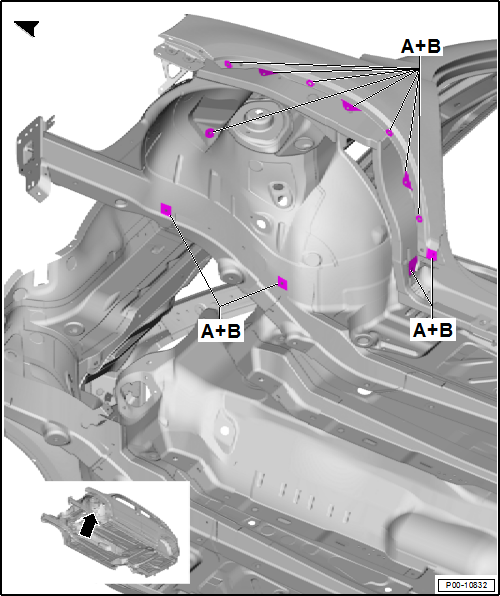

Left Front Fender Cover Points

Left side shown, right side is a mirror image

Volswagen Tiguan. Left Front Fender Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup

Center Body Cover Points

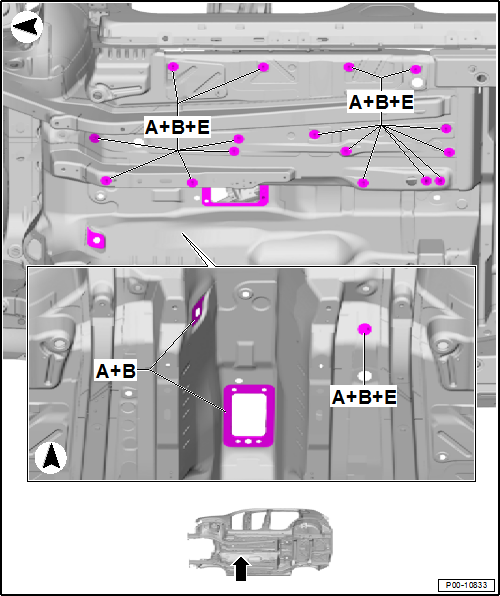

Center Underbody Cover Points, Left Side of the Vehicle

Volswagen Tiguan. Center Body Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  1. Functional after Sealing and Underbody Protection (for Pins)

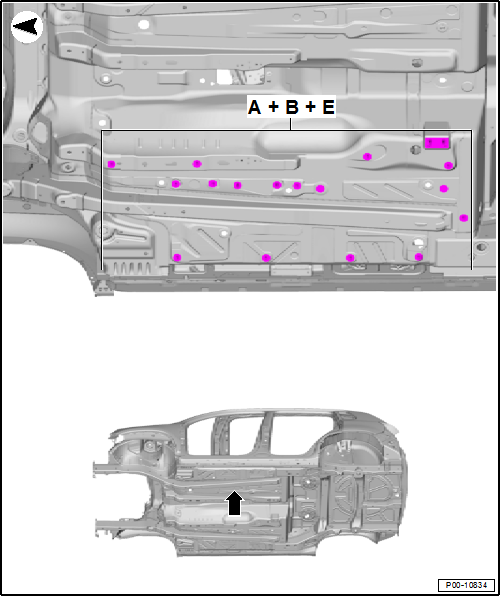

Center Underbody Cover Points, Right Side of the Vehicle

Volswagen Tiguan. Center Underbody Cover Points, Right Side of the Vehicle

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  1. Functional after Sealing and Underbody Protection (for Pins)

Rear Body Cover Points

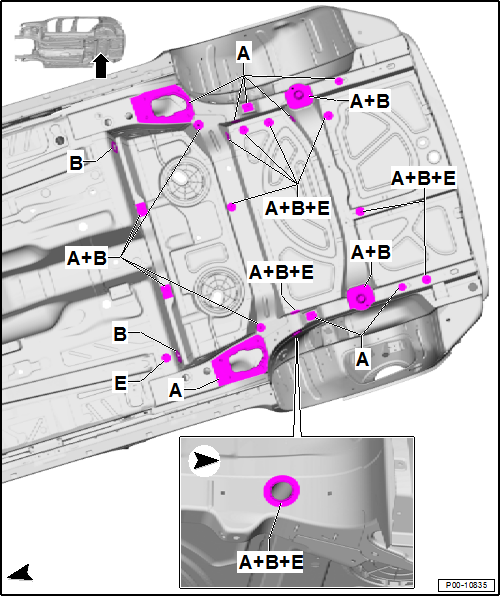

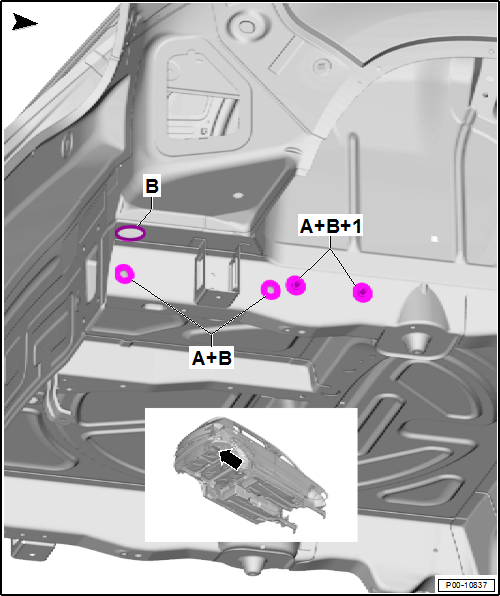

Rear Underbody Cover Points

Volswagen Tiguan. Rear Underbody Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  1. Functional after Sealing and Underbody Protection (for Pins)

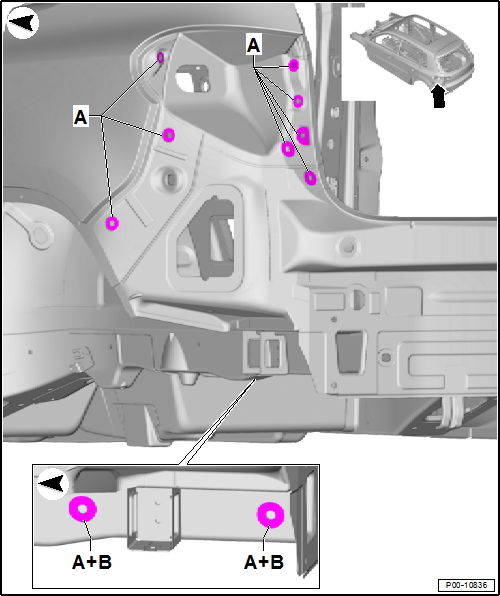

Left Rear Side Panel Cover Points

Left side shown, right side is a mirror image

Volswagen Tiguan. Left side shown, right side is a mirror image

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup

Right Rear Side Panel Cover Points

Volswagen Tiguan. Right Rear Side Panel Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  1. Additional Cover Points on Gasoline Engine Vehicles

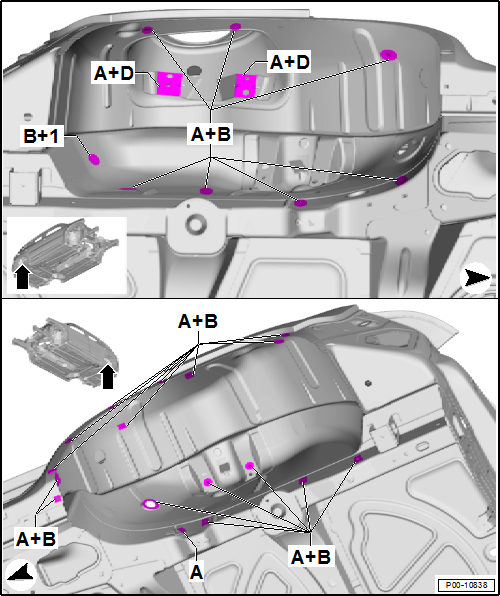

Rear Wheel Housing Cover Points

The upper illustration shows the right side of the vehicle, and the lower illustration shows the left side of the vehicle.

Volswagen Tiguan. Rear Wheel Housing Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
  3. Threads Free of Wax
  1. Additional for North American Vehicles

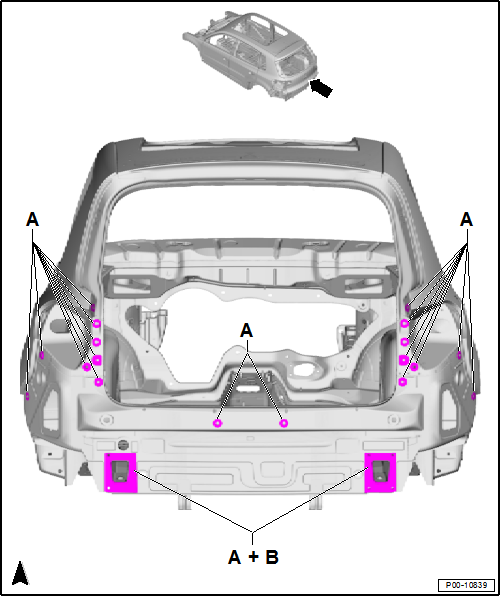

Rear Lid End Piece Cover Points

Volswagen Tiguan. Rear Lid End Piece Cover Points

  1. Threads and Contact Surfaces Free of Sealant
  2. Contact Surfaces Free of Wax Buildup
    Symbol Explanations
    Sanding Avoid Areas That Have Been Sanded Through It is recommended, to sand the marked areas by hand, to avoid "sanding through" the cataphoretic paint primer. Seam Sealing Sealing Apply seal ...

    Seam Sealing
    ...
